Pendant Station PLB12

PLB12

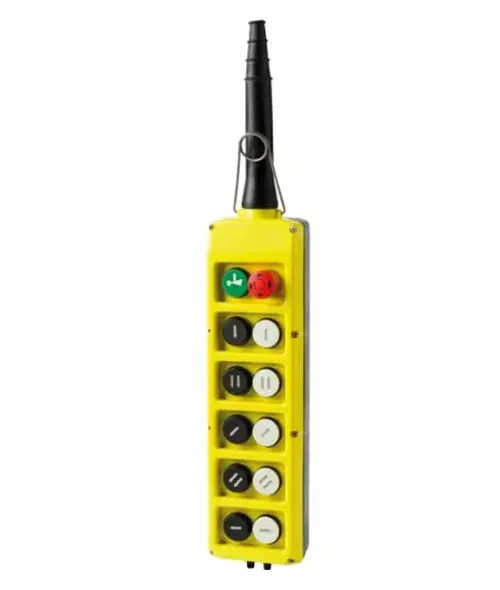

PLB12 SERIES – Double row pendant control station with 12 push buttons for crane – Historical line

Codes configuration

PLB12 – Single speed (START/ALARM:1NO – MUSHROOM:1NC – UP:1NO – DOWN:1NO – DOUBLEUP:2NO – DOUBLEDOWN:2NO – UP45°:1NO – DOWN45°:1NO – DOUBLEUP45°:2NO – DOUBLEDOWN45°:2NO – LEFT:1NO – RIGHT:1NO)

Features

Bi-directionality is mechanically interlocked;
IP65 Double insulation (IEC / EN 60529);
Laser engraved symbols with laser marking according to EN 60204-1, FEM 9.941;
Shock proof and heat resistant;
Available versions: for single or double speed motors;
Available with UL/CSA requirements, upon request also in V0 material, UL approved;
Available in kit version (with PL laser engraved push buttons).
